Low-E 막 제거 · 복층유리 및 Low-E 가공 라인

복층유리 Low-E 코팅 제거 휠

복층유리 실링 전 Low-E 막 제거 폭, 유리 두께와 라인 조건에 맞춰 습식 휠을 선택합니다.

핵심 답변

A Low-E glass coating removal machine removes the conductive coating from the glass perimeter before insulating-glass sealing. Confirm the glass size, thickness and conveyor speed, then match a wet or dry Low-E removal wheel to the coating system, removal width and machine mounting.

공정과 장비 개요

복층유리 및 Low-E 가공 라인에서 습식 Low-E 제거 휠과 후속 세척 공정를 공정 순서와 유리 조건에 맞춰 검토합니다.

복층유리 Low-E 코팅 제거 휠 Low-E glass coating removal machine with roller conveyor for insulating glass production
Low-E glass coating removal machine with roller conveyor for insulating glass production

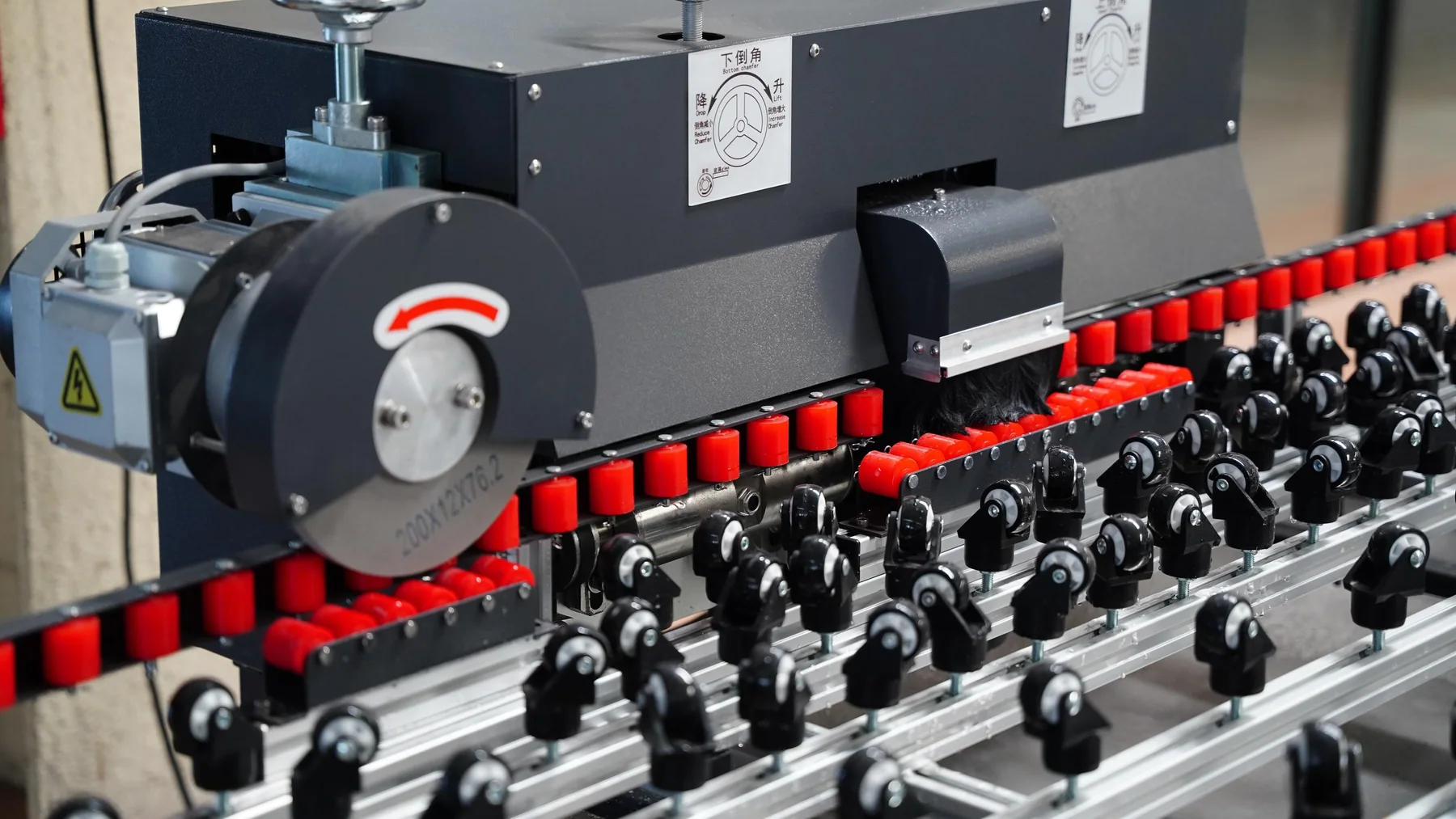

복층유리 Low-E 코팅 제거 휠 Low-E glass edge coating removal machine wheel head and conveyor rollers
Low-E glass edge coating removal machine wheel head and conveyor rollers

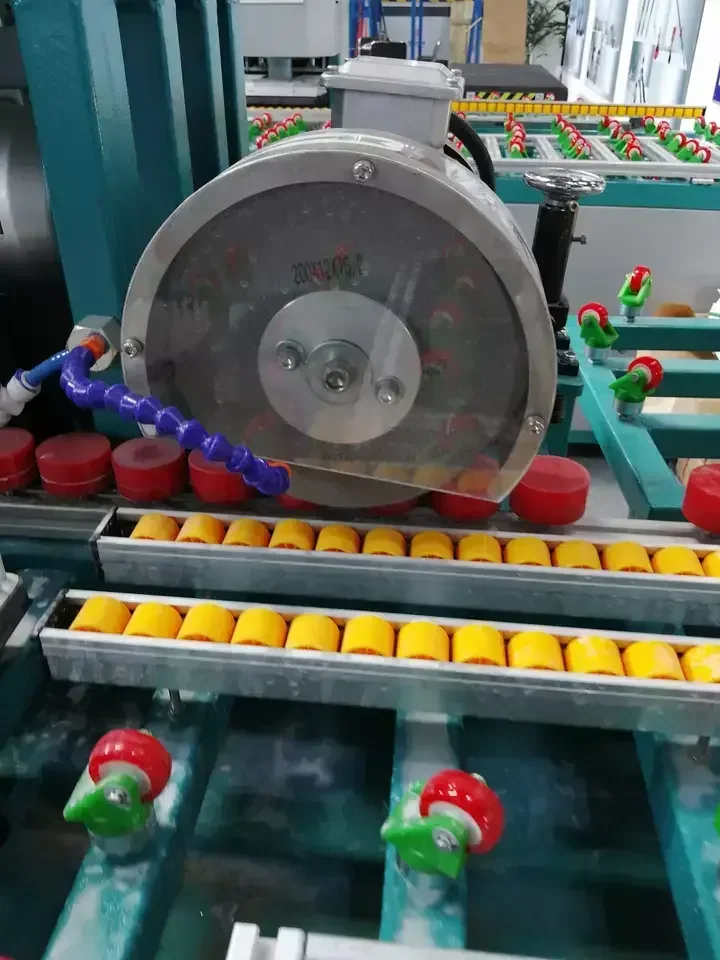

복층유리 Low-E 코팅 제거 휠 Wet Low-E coating removal wheel installed on a glass processing machine
Wet Low-E coating removal wheel installed on a glass processing machine

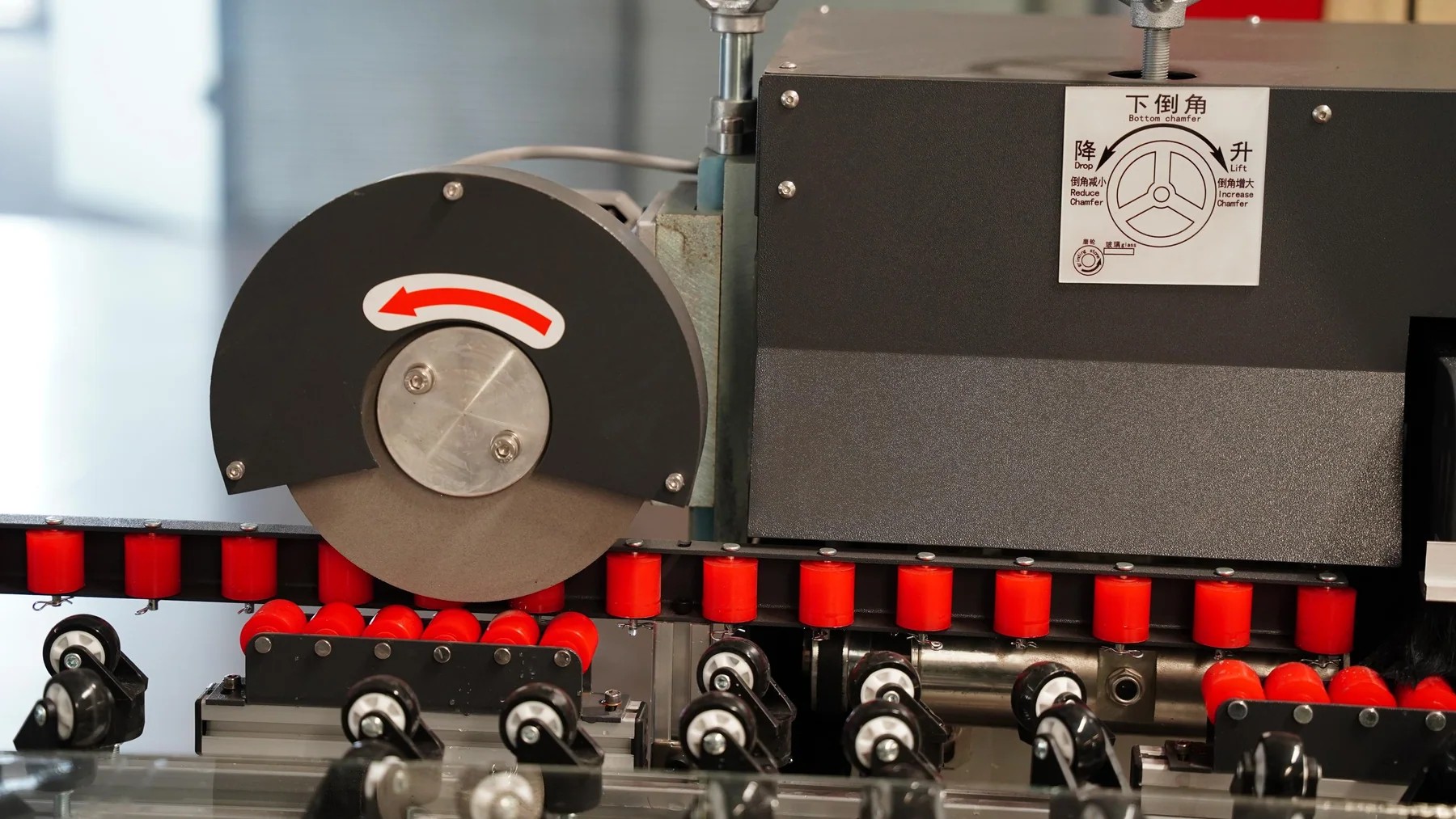

복층유리 Low-E 코팅 제거 휠 Low-E glass edge deletion machine wheel-height and chamfer adjustment assembly
Low-E glass edge deletion machine wheel-height and chamfer adjustment assembly

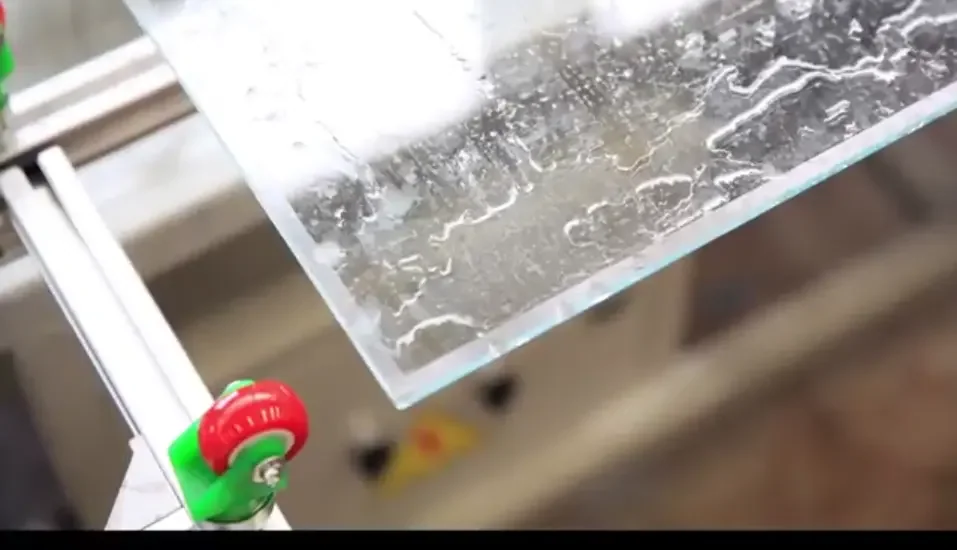

복층유리 Low-E 코팅 제거 휠 Low-E coated glass edge entering the coating removal process
Low-E coated glass edge entering the coating removal process

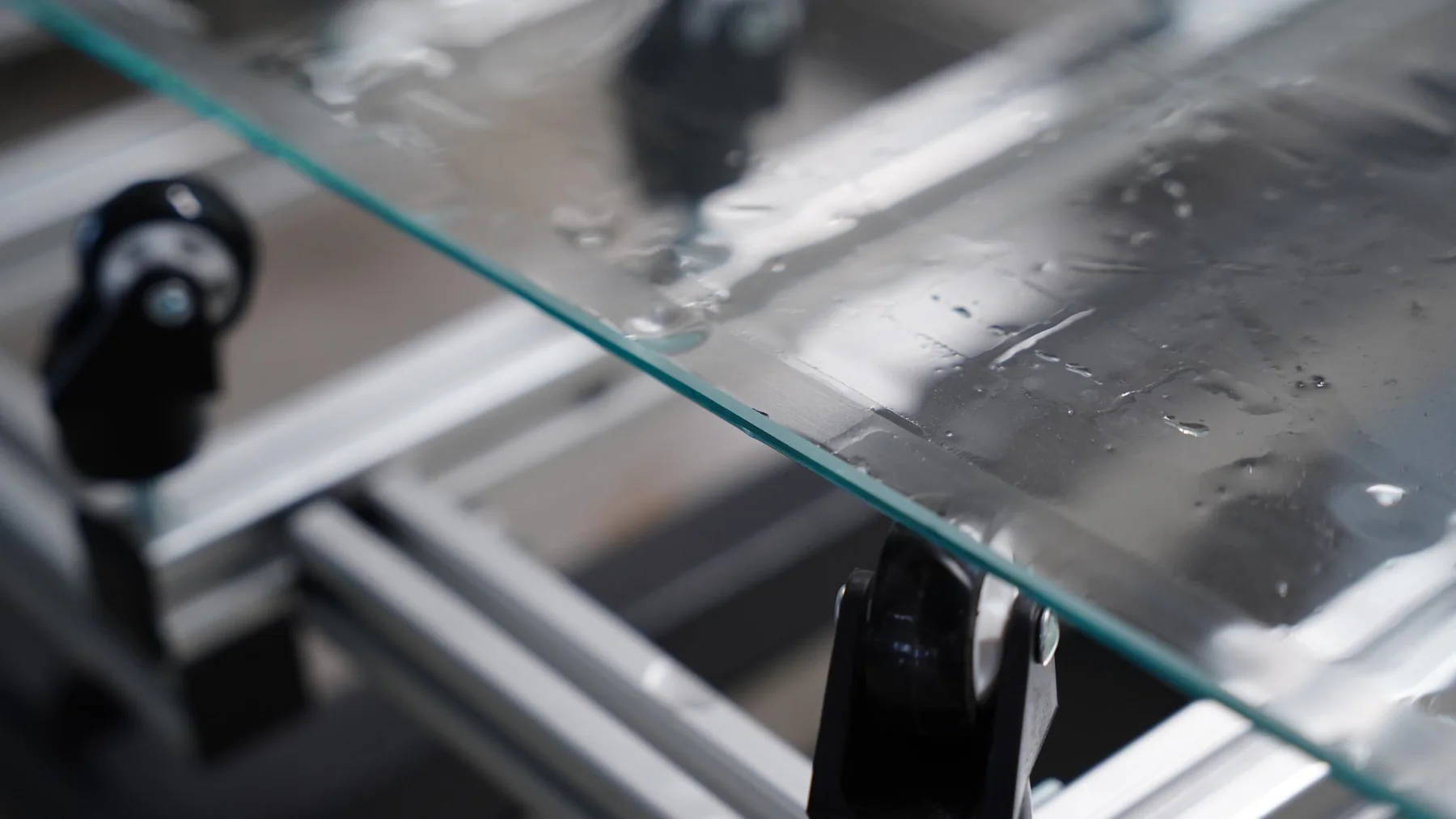

복층유리 Low-E 코팅 제거 휠 Processed Low-E glass edge after controlled coating removal
Processed Low-E glass edge after controlled coating removal

장비 사양

Processed glass heightMinimum 300 mm; maximum 2000 mm
Processed glass lengthMinimum 500 mm; maximum 2500 mm
유리 두께4–60 mm
컨베이어 속도4–20 m/min
장비 치수(L × W × H)3500 × 1500 × 1500 mm

휠 헤드와 위치

위치공정휠 유형사양모터

선정 절차

  1. Low-E 막의 종류와 제거 폭을 확인합니다.
  2. 유리 두께, 장비 위치와 냉각을 확인합니다.
  3. 실링 품질을 기준으로 제거 결과를 점검합니다.

선정 시 확인할 항목

  • 코팅 종류와 제거 폭
  • 라인 속도와 냉각수
  • 실링 전 잔류막과 가장자리 상태

추천 제품 목록

Insulating-Glass Line Removal Wheels

Low-E edge deletion before spacer and sealing operations

Double-Edger Wet Removal Wheels

Wet Low-E coating removal on double-edging production lines

구매 전 질문

복층유리 Low-E 코팅 제거 휠 FAQ

Is Low-E glass still clear?

Yes. Low-E glass maintains high clarity while reducing heat transfer and ultraviolet transmission.

Is there a machine that cuts glass?

Yes. Automatic and CNC glass cutting machines are available for precise glass cutting. Low-E edge deletion is a separate process performed before insulating-glass sealing.

What are the downsides of using Low-E glass windows?

Low-E glass has a higher initial cost and requires careful handling during processing to avoid damage to the coating.

Can Lowe's cut glass?

This service may be available at local Lowe's stores. ZHUIFENG supplies professional glass-processing equipment and Low-E coating removal solutions for factories.
