Polishing Wheels · P110006

10S Glass Polishing Wheel for Straight-Line and Double-Edging Machines

Quick answer: 10S polishing wheels are used for glass edging-machine polishing on straight-line and double-edging machines. The chamfer-polishing reference is 130 × 35 × 60 mm, and the bottom-edge-polishing reference is 150 × 40 × 70 mm. Common grit options are 40 / 60 / 80; confirm the machine position and required edge result before quotation.

CodeOverall heightDiameter rangeConnection / notes
P11000635 mm130 mm60 mm bore; chamfer-polishing reference; 10S40 / 10S60 / 10S80
40 mm150 mm70 mm bore; bottom-edge-polishing reference; 10S40 / 10S60 / 10S80
Share This Product:

Product details

What this product is used for

Final glass-edge polishing on straight-line edging and double-edging machines. Reference chamfer wheel: 130 × 35 × 60 mm; reference bottom-edge wheel: 150 × 40 × 70 mm.

Choosing 10S or 10SK for glass edge polishing

Buyers often ask whether 10S or 10SK is the better polishing wheel. The useful answer is that they serve different finishing targets, so the choice should begin with the required glass-edge result rather than a model name alone.

10S is suited to applications where the main target is a flat, clean, scratch-free polished edge without a specific brightness target. When correctly matched to the machine position and pressure, it supports an even polishing result while keeping consumable selection practical.

For conditions that need a clean edge together with a stronger brightening effect, 10SK may be a better fit. It is not a simple replacement for 10S. Confirm the existing wheel sequence, glass type and required finish before choosing; correct wheel matching supports stable output and better yield.

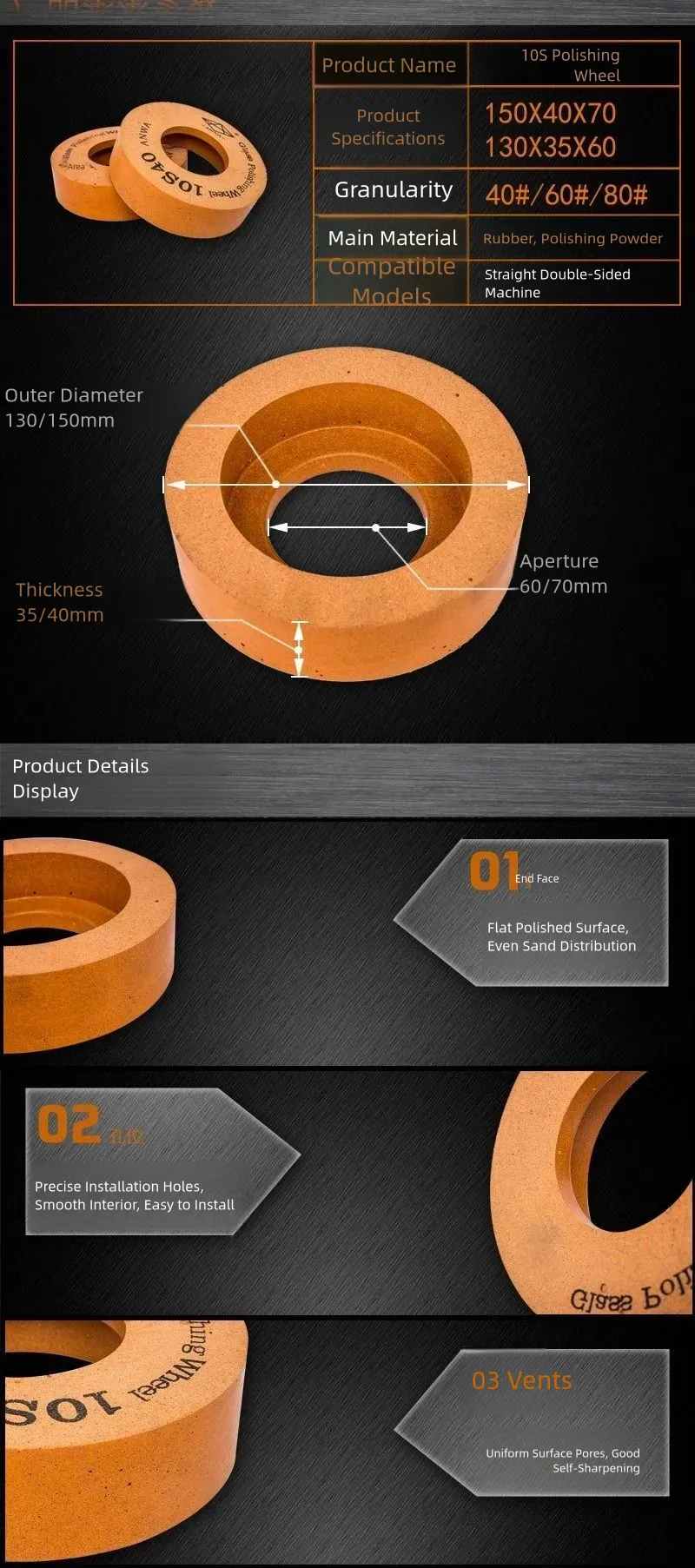

10S Glass Polishing Wheel for Straight-Line and Double-Edging Machines product detail 1: material, dimensions and drilling application10S Glass Polishing Wheel for Straight-Line and Double-Edging Machines product detail 2: material, dimensions and drilling application
Buyer questions

Frequently Asked Questions

How do I polish cut glass edges to get perfect edges?

Grind rough edges progressively with diamond wheels in finer grits, then complete final polishing with cerium oxide and suitable soft polishing wheels under continuous water cooling.

How do I choose the right polishing wheel?

Select according to the workpiece material, required edge finish and machine type. Confirm the current wheel sequence, polishing position and target appearance before choosing a wheel.

What is the easiest way to polish glass?

Clean the glass first, apply cerium oxide slurry with a suitable polishing pad or wheel, use controlled pressure with a steady water supply, then clean the edge after polishing.

What is glass edge polishing?

It is the process of grinding and smoothing raw cut glass edges to remove burrs and sharp corners and achieve a safer, smoother or glossier finished edge.

Request a recommendation

Ask About This Product

Send your machine model, current wheel dimensions and glass application. We will review the specification for 10S Glass Polishing Wheel for Straight-Line and Double-Edging Machines before quotation.
