Product details
What this product is used for
Fine grinding after the bottom-edge diamond-wheel rough-grinding stage on straight-line edging and double-edging machines, before final polishing.
Why shallow grinding lines remain before polishing
When shallow, regular grinding lines remain on a glass edge after several wheels, the cause is often misunderstood. In a typical edging sequence, diamond wheels perform rough grinding and shaping; the resin wheel then refines the remaining marks; and the polishing wheel raises the final brightness.
If the resin wheel does not have the correct cutting action or mark-removal capability for the process, shallow lines can pass into the polishing stage. A polishing wheel can improve brightness, but it cannot reliably remove marks that should have been refined at the preceding resin-wheel position.
For this condition, review the resin-wheel position first: its diameter, bore, working layer, grit, pressure, coolant and the prior diamond-wheel result. A correctly matched green resin wheel can create a finer, more even edge surface and provide a better base for final polishing. Every stage has its role: diamond wheel for grinding, resin wheel for mark refinement and polishing wheel for brightness.
Equipment, position and companion-wheel selection

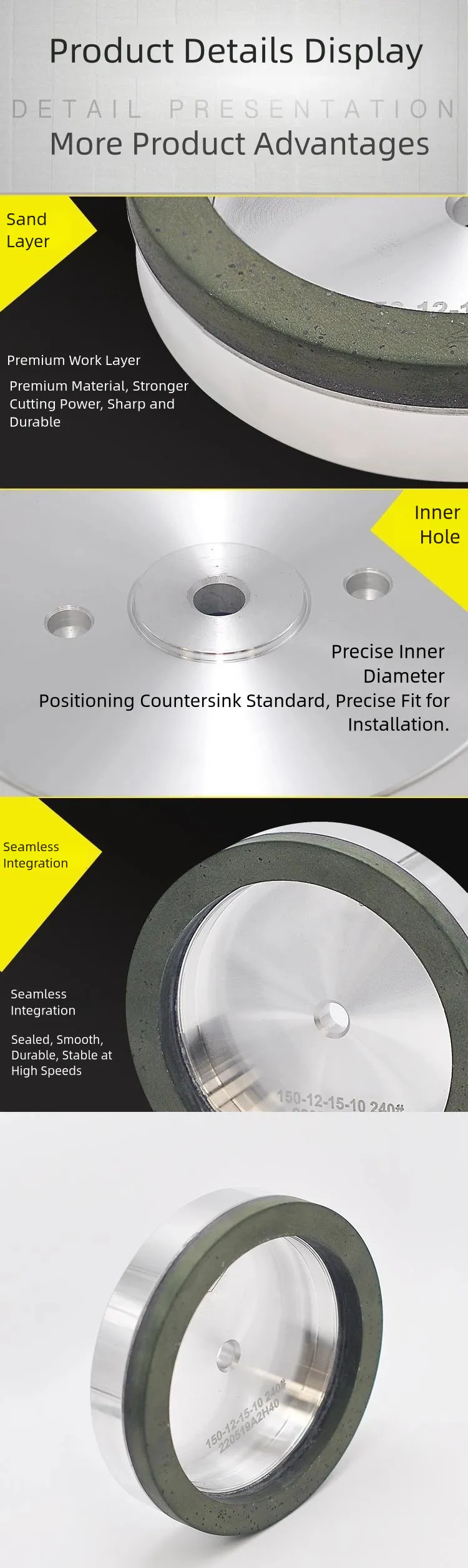

This green resin wheel is intended for the fine-grinding position after a bottom-edge diamond wheel and before the final polishing position. It fits compatible straight-line edging machines and double-edging machines; confirm the spindle layout and position number before ordering.
- Recommended station: resin fine grinding / mark refinement after the diamond rough-grinding station.

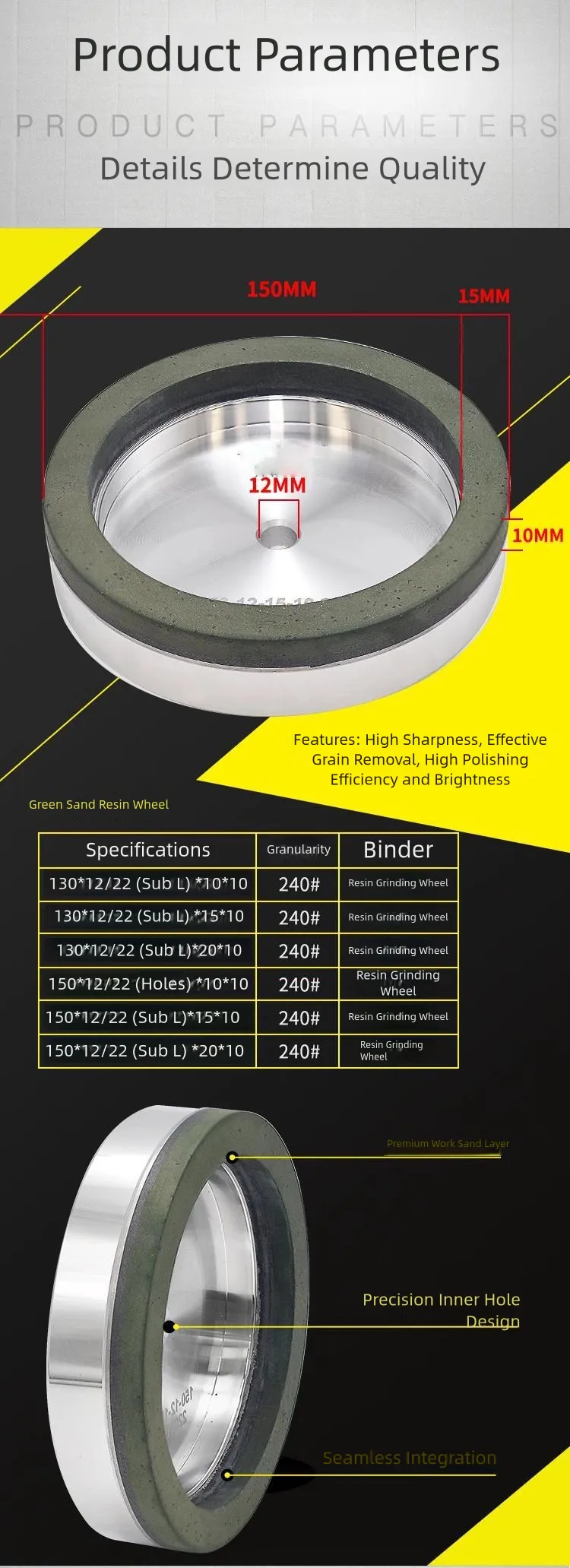

- Reference sizes: 130 or 150 mm outside diameter, 12 or 22 mm bore, with 10 × 10, 15 × 10 or 20 × 10 mm working-layer options.
- Reference grit: 240 for the listed S600014 configurations; confirm the required transition from the previous diamond grit and the following polishing stage.
- Recommended diamond companion: use a compatible Q5 diamond cup wheel or another approved bottom-edge diamond wheel for the preceding removal and shaping stage.
- Next finishing step: review the 10S glass polishing wheel after resin fine grinding when the target is a cleaner, brighter edge.
For the complete process layout, see the resin wheel category and the double-edging machine wheel solution. The resin wheel refines marks; it should not be expected to replace the preceding diamond wheel or correct a wrong edge profile.
Product attributes
Packaging information
- Reference product weight: approximately 500 g per wheel.
- Protective individual packaging and outer cartons are selected according to order quantity and destination.
- Confirm carton dimensions, gross weight and labels before freight quotation.
